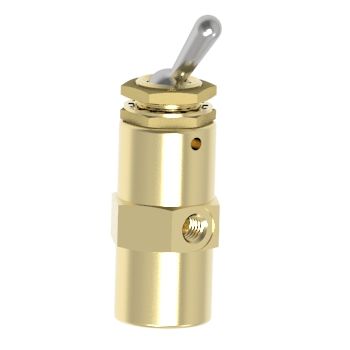

TAC Miniature Toggle Valve
Four way miniature toggle valve, detented, with 10-32 UNF ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.
Détails et données
No. d'article
4V
Fabricant
Humphrey
Number of Ports
5 ports
Number of Positions
2 positions
Valve Function
4-way, Detent
Piping Type
Inline, Direct Piping
Options Included
Panel Mounting Hardware
Approx Size (in) HxWxD
2.12 x 0.69 HEX
Media
Air
Type of Operation
Toggle
Flow Capacity (Cv)
0.18
Port Size
10-32 UNF
Lubrication
Recommended
Media Filtration
40 micron recommended
Pressure Range (psi)
0-125
Ambient Temperature Range (⁰F)
-20~180
Wetted Materials
Brass, SST, Buna N
Weight (oz)
2.5
